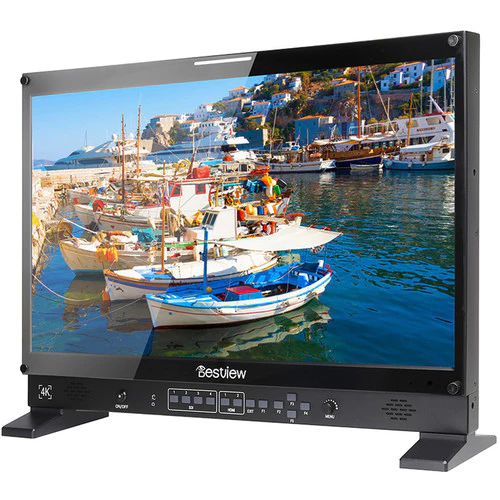

Desview 4K UHD LED Quad Split-View Broadcast Monitor

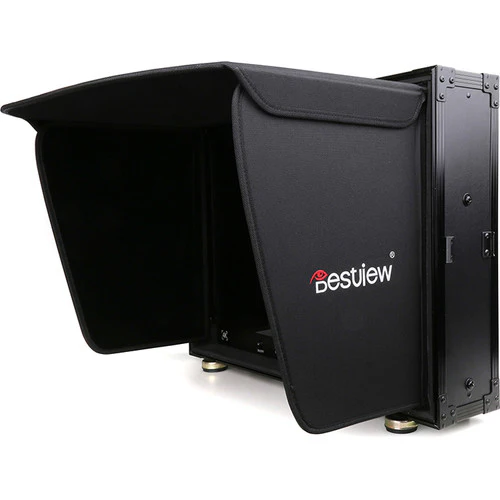

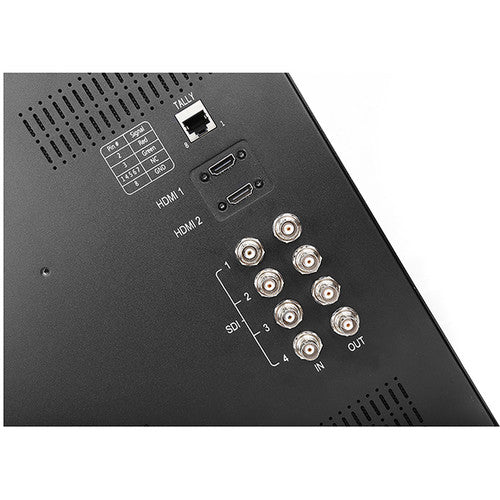

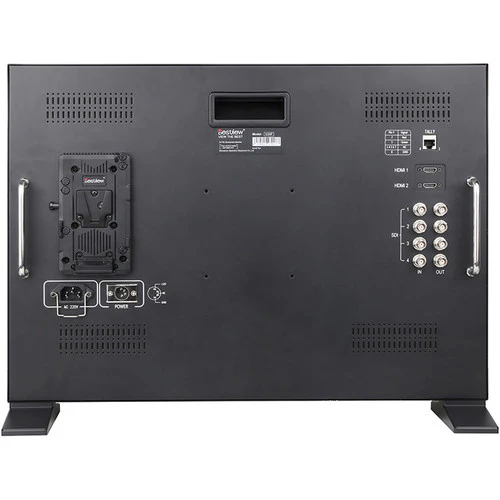

The Desview 4K UHD LED Quad Split-View Broadcast Monitor is a monitor with a 24" 10-bit IPS screen that has multiple viewing options, including quad and multi-view. It supports a resolution of up to 3840 x 2160 at 60 Hz and has an aspect ratio of 16:9. This monitor has a 178° wide viewing angle and a brightness of 400 cd/m². It features four SDI inputs, four SDI thru-puts, two HDMI inputs, a tally RJ45 input, audio (L/R) input, a stereo headphone output, and stereo built-in speakers. This monitor can be powered via an AC power cable, XLR power adapter, or a V-mount battery (available separately). It includes a sun hood, a HDMI cable, a SDI cable, and a wipe cloth.

• Rec. 709 standard for color calibration
• Acrylic screen for panel protection

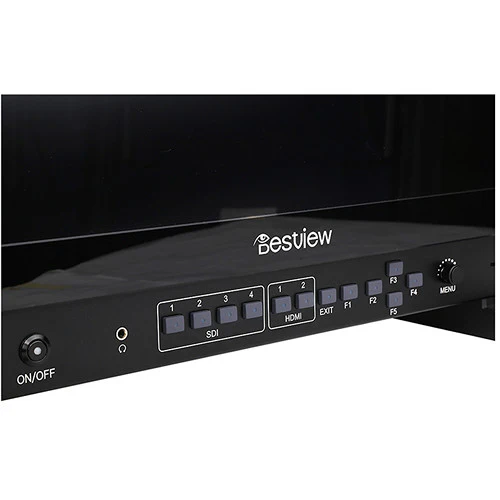

• Short-cut setting can be customized by users

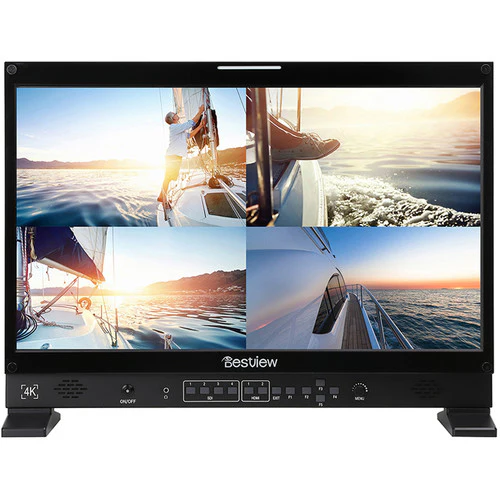

• PIP/PBP multi-view function allows multiple cameras to connect at the same time
• Picture switch
• R/G/B check field
• Peaking
• Center mark
• Safe area
• Display ratio
• Underscan

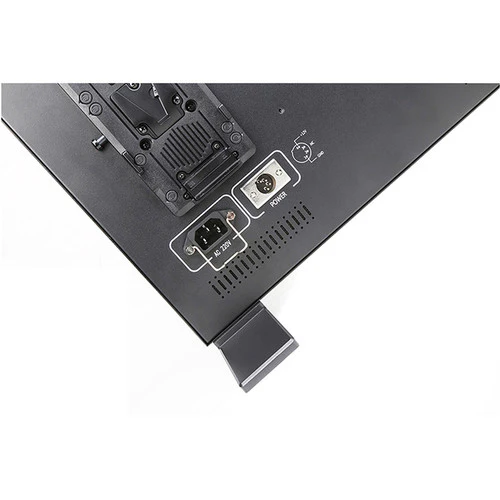

• Supports 110-220 VAC, 12 VDC XLR power supply, or V-lock battery
• Sunhood with zip design is easy to open
