The Story
- Supports Any IDX ENDURA Battery
- Unregulated D-Tap Output
- Compatible with IDX A-CP(A) Cheese Plate

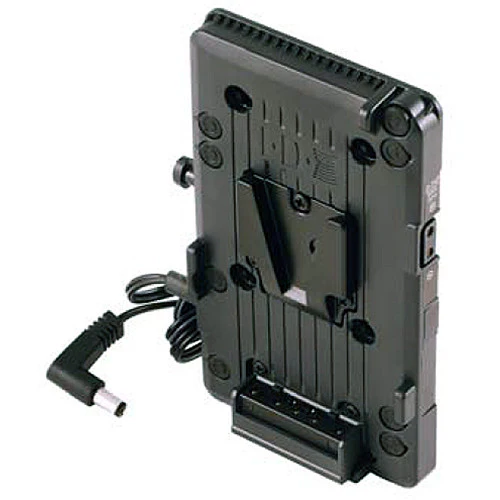

The IDX V-Mount Adapter Plate for Blackmagic Cinema Camera enables any IDX ENDURA battery to power Blackmagic's 2.5K or 4K cinema camera. An integrated 40" DC cable plugs into the camera to power it. An unregulated D-Tap output capable of taking a 50W load is available for powering accessories.
A suitable mounting plate, such as the IDX A-CP(A) cheese plate, is required for mounting this adapter plate onto a rig. Four M3 x 8mm screws are included for attaching to a mounting plate.
| Cable Output Voltage | 12 - 17 V DC |
| D-Tap Output Voltage | 12 - 17 V DC |
| Maximum D-Tap Output | 50 W |
| Cable Length | Approx. 40" (1 m) |
| Dimensions | 3.2 x 5.6 x .5" (8.2 x 14.2 x 1.2 cm) |
| Weight | Approx. 0.46 lb (210 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.5 lb |
| Box Dimensions (LxWxH) | 4.6 x 4.4 x 1.2" |
