The Story
OVERVIEW
- 35mm T2.1 Full-Frame Sensor Coverage
- Sony E Mount, 45mm Image Circle
- 13" Minimum Focus Distance
- 330° Focus Rotation
- Focus Marks in Feet & Meters
- 90mm Front Diameter, 82mm Filter Thread
- 11 Iris Blades, 14 Elements in 9 Groups
- 0.8 MOD Focus & Iris Gears
- Weighs 2.4 Pounds

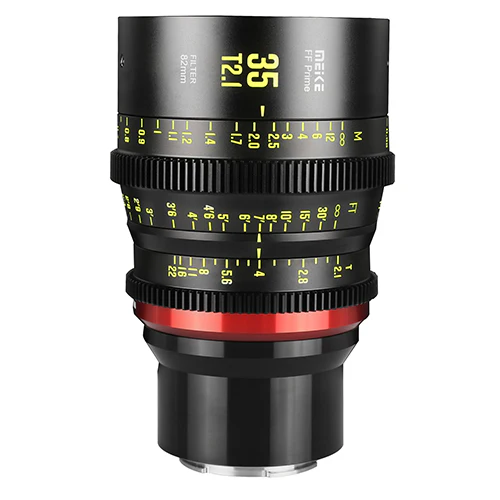

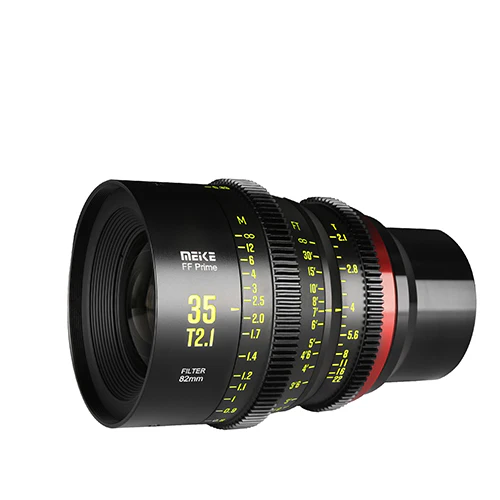

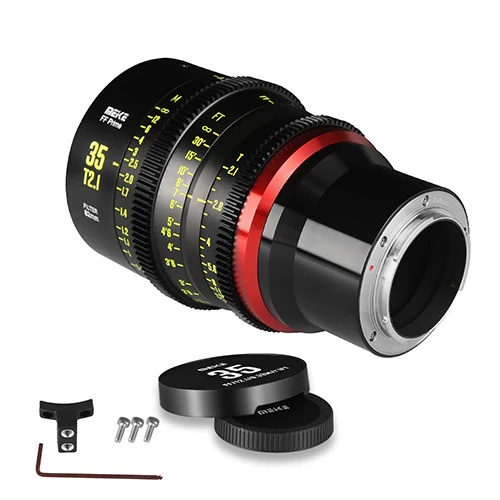

Capture crisp, cinematic images when using your full-frame cinema camera with this E-mount 35mm T2.1 FF-Prime Cine Lens from Meike. The 35mm prime adds to the Meike FF Prime series of lenses that features a 45mm image circle for full-frame sensor coverage. This prime lens has a fast T2.1 maximum aperture, standard 0.8 MOD focus and iris gears, and an 11-bladed iris for smooth, rounded bokeh.
Scale markings are provided in both feet and meters, it has an 82mm filter thread, and a focus rotation of 330° allows for precision manual focus adjustment. With a 35mm focal length, this cine lens has a horizontal angle of view of 52° with a full-frame sensor and a minimum focus distance of 13".
Features
- Sony E mount
- 45mm image circle for full-frame coverage
- Fast T2.1 maximum aperture
- Cine-standard 0.8 MOD focus and iris gears
- 330° focus rotation
- 14 elements in 9 groups
- 90mm front diameter, 82mm filter thread
- Focus marks in feet and meters
SPECS
| Focal Length | 35mm |
| Lens Mount | Sony E |
| Format | Full Frame |
| Image Circle | 45.0 mm |
| Maximum T-Stop | T2.1 |
| Minimum T-Stop | T22 |
| Diagonal Angle of View | Full Frame: 63.5° APS-C (1.5x): 43.2° |
| Horizontal Angle of View | Full Frame: 52° APS-C (1.5x): 34.9° |
| Minimum Focus Distance | From Image Plane: 13.0" / 33 cm |
| Optical Design | 14 Elements in 9 Groups |
| Iris Blades | 11 |
| Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch |
| Front Diameter | 90 mm |
| Filter Thread | 82 mm |
| Focus Scales | Metric, Imperial |
| Focus Rotation | 330° |
| Length | 4.4" / 110.5 mm |
| Weight | 2.4 lb / 1107 g |
