The Story

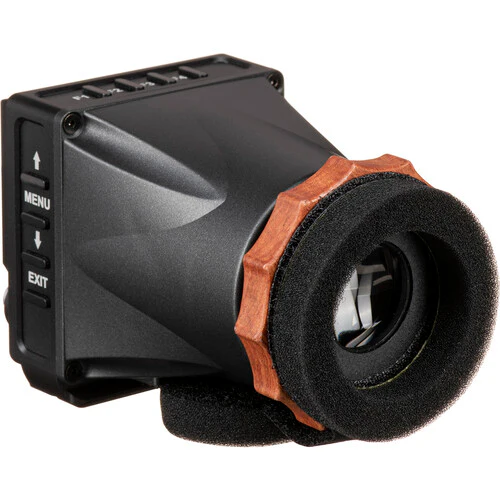

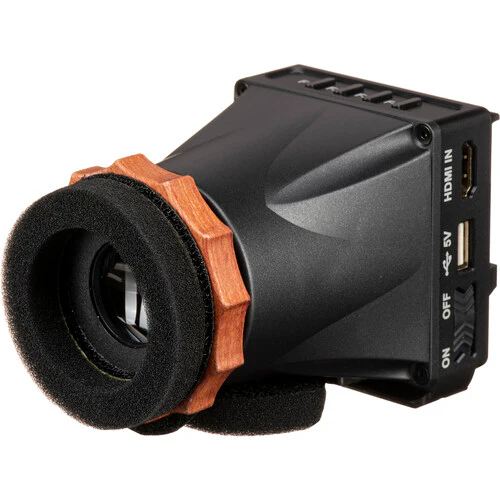

The PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder is a compact EVF designed for high-resolution monitoring via HDMI. It supports video input up to DCI 4K at 30 fps from your camera's HDMI output. Featuring a 2.4-inch LCD screen with a 1440 x 900 resolution, 450 cd/m² brightness, and a 1100:1 contrast ratio, it delivers sharp, vivid images—even in bright outdoor environments.
The LEYE III's diopter provides -3 to +8 adjustment parameters, and the software boasts numerous functions such as waveform, histogram, scaling, flip, guides, zoom, and image flip and crop. Import 3D LUTs via its USB Type-A port with waveform optional detect data before or after loading 3D LUT.

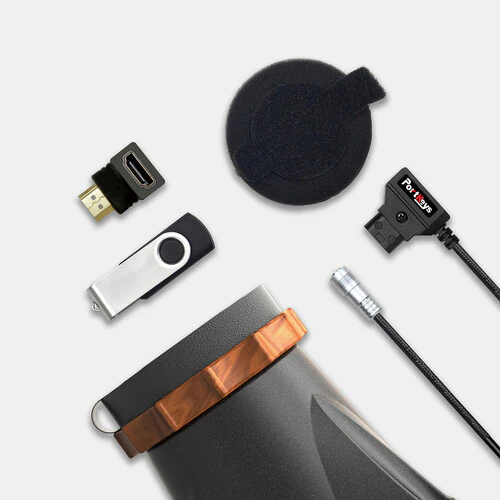

A passive heatsink vent ensures adequate heat dissipation and improves overall performance. The rugged metal enclosure gives the electronic viewfinder a sturdy feel, and mounting on a vast variety of rigs is achieved via its ARRI-style anti-twist mount, a NATO accessory rail, or a 1/4"-20 thread. A self-locking 4-pin aviation-grade power connector to D-Tap cable is included for powering the EVF, and an integrated Canon LP-E6 plate gives you the option to power using a separately available battery. Also included are an HDMI right-angle adapter, a USB flash drive for updating firmware, and a soft, flat eye sponge for the viewfinder for viewing while wearing glasses.
Features
- EVF with 1440 x 900 LCD screen; supports up to DCI 4K30 video input
- One HDMI input
- Soft eye sponge to allow viewing with glasses
- 2.4" screen size, 300 cd/m² brightness, 1100:1 contrast ratio, and 8-bit color depth
- 3D LUT import via USB Type-A port
- Waveform optional detect data before or after loading 3D LUT
- Passive heatsink vent for improved heat dissipation and performance
- Numerous software functions such as image flip, false color, histogram, tint, scaling, zebra, underscan, grids, image crop, and more
- Peaking no longer grabs guides
- -3 to +8 diopter adjustment
- ARRI-style accessory mount, 1/4"-20 thread, and NATO rail mounting
- Constructed from durable metal to withstand rough environments
- D-Tap to self-locking 4-pin aviation-grade power cable included
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder is a compact EVF designed for high-resolution monitoring via HDMI. It supports video input up to DCI 4K at 30 fps from your camera's HDMI output. Featuring a 2.4-inch LCD screen with a 1440 x 900 resolution, 450 cd/m² brightness, and a 1100:1 contrast ratio, it delivers sharp, vivid images—even in bright outdoor environments.
The LEYE III's diopter provides -3 to +8 adjustment parameters, and the software boasts numerous functions such as waveform, histogram, scaling, flip, guides, zoom, and image flip and crop. Import 3D LUTs via its USB Type-A port with waveform optional detect data before or after loading 3D LUT.
A passive heatsink vent ensures adequate heat dissipation and improves overall performance. The rugged metal enclosure gives the electronic viewfinder a sturdy feel, and mounting on a vast variety of rigs is achieved via its ARRI-style anti-twist mount, a NATO accessory rail, or a 1/4"-20 thread. A self-locking 4-pin aviation-grade power connector to D-Tap cable is included for powering the EVF, and an integrated Canon LP-E6 plate gives you the option to power using a separately available battery. Also included are an HDMI right-angle adapter, a USB flash drive for updating firmware, and a soft, flat eye sponge for the viewfinder for viewing while wearing glasses.
Features
- EVF with 1440 x 900 LCD screen; supports up to DCI 4K30 video input
- One HDMI input
- Soft eye sponge to allow viewing with glasses
- 2.4" screen size, 300 cd/m² brightness, 1100:1 contrast ratio, and 8-bit color depth
- 3D LUT import via USB Type-A port
- Waveform optional detect data before or after loading 3D LUT
- Passive heatsink vent for improved heat dissipation and performance
- Numerous software functions such as image flip, false color, histogram, tint, scaling, zebra, underscan, grids, image crop, and more
- Peaking no longer grabs guides
- -3 to +8 diopter adjustment
- ARRI-style accessory mount, 1/4"-20 thread, and NATO rail mounting
- Constructed from durable metal to withstand rough environments
- D-Tap to self-locking 4-pin aviation-grade power cable included
