OVERVIEW

8 x Titan Tube LED Lights
1 x Titan Tube Charging Case
16 x Holders with Cotter Pins
16 x Spigots, 8 x Floor Stands
White Light Range: 1750 to 20,000K
Hue, Saturation, and Intensity Control
Wireless DMX, CRMX, W-DMX Compatible

This Set of 8 Titan Tubes with Charging Case from Astera is a formidable setup destined for the road. The set includes eight Titan Tube LED lights and a hard, shippable charging case with a DMX-compatible PowerBox that can actually charge the tubes with them inside. Astera has provided a full array of mounting options including sixteen holders with cotter pins for truss mounting, and sixteen spigots for joining tubes together and to be used as mounting studs for the eight included floor stands.

Astera TitanTube RGB LED Light

With a wide 120° beam spread, the Astera TitanTube RGB LED Light is ideal for creating a soft direct light on your subject for use as an accent light or design element on location or on set. Suitable for cine, theatrical, and event productions, the wireless tube is powered by an integrated LG Chem Li-ion battery that will give you 20 hours of runtime on a three-hour charge. The light features 16 LED emitters in a 40.7" long tube that you can mount onto a set or on a stand, hang from a grid, or even hold in your bare hand. The TitanTube has an impressive CRI/TLCI rating of 96/96 indicating high accuracy in the rendition of color. The TitanTube uses RGB, mint, and amber LEDs as well as hue, saturation, and intensity control to access millions of custom colors.

Color and control are at the heart of the TitanTube's design. The tube has an expansive white light range of 1750 to 20,000K to seamlessly blend into any ambient light situation, or just to exercise creative expression. You can make these adjustments locally on the fixture, or remotely via several ways such as from a console with TitanTube wired to it. Wireless DMX, CRMX, and other types of units can adjust functions at distances up to 990'. There's also an AsteraApp that lets you control the light via Bluetooth and IR control via an optional remote. The TitanTube ships without a power supply. Choose between an optional AC adapter and a PowerBox.

Control

You can use the Astera infrared remote control (not included) by simply pointing it at individual lights to set the desired effect.
The downloadable AsteraApp is an efficient way to quickly create a customized light show using your smart device. It can group several lights, address individual lights or groups of lights, and send complex effects with a user-defined color palette to all lights in the range.
The light can also be controlled by CRMX (wireless DMX), as the built-in receiver is compatible with all LumenRadio CRMX transmitters.

Wireless Modules

865 to 870 MHz
902 to 928 MHz
2.4 GHz

TruColor Calibration

Achieve 100% color consistency through any batch. It can hit exact color temperatures and reproduce standard filter gels.

Tunable White

Ranges from 1750 to 20,000K.

Green/Magenta Correction

Adjust green/magenta during content creation to reduce post-production work.

20-Hour Runtime

Set the length of your event and be sure that your lights won't run out while still getting the maximum brightness.

Effects

Quickly build programs out of colors and effects, trigger them, or make them match a beat.

Talkback +

Detect all available lights, set them up, check their status, and configure DMX addresses and DMX profiles.

Anti-Theft

The lights give visual and audible alarms and send notifications to the AsteraApp if they are being moved during an event.

Flicker-Free Filming

Scrambled PWM (Pulse Width Modulation) technology is used to prevent flickering when filming the lights.

Scheduled Standby Mode

You can switch the Astera TitanTube into standby mode to save power, and schedule it to wake up when the event starts.

DJ Application

Auto BPM analyzes the beat and matches programs to it, and flash buttons can trigger special effects.

Dynamic Power Boost

The dynamic power boost feature enables the light to display the maximum brightness at all times and intensify non-white colors.

Emergency Lights

It switches to white light when AC power is cut to keep your event safe.

Other Features

The AsteraApp is packed with many additional items and new features are frequently added via software updates.

Astera Titan Tube Charging Case (Black)

Store, transport, protect, and charge up to eight Titan Tube lights at once in this black Astera Charging Case. The case features a top handle and a latch closure.

Charges eight Titan Tubes at the same time
Holds: 8 Titan Tubes, 1 x FP1-PWB PowerBox, 8 x DC Connection Cables, 16 AX1-EBLT Eyebolts, 16 AX1H Clamps, 8 x AX1-STD Stands, 16 x AX1-BLT BabyPins
Material ABS plastic
Operating Temperature: 32-104° / 0-40°
Input Voltage: 90-250 VAC
Current: 4.4A @ 115 VAC / 3A @ 230 VAC
Output Voltage: 10 x 24 VDC
Output Current: 10 x 2A
Power In: Via Powercon True1
Power Out: Via Powercon True1
Astera M5 Eyebolt for Ax1 Pixel, Helios, Titan and Hyperion Tubes (Pair)
This pair of M5 Eyebolts for Ax1 Pixel, Helios, Titan and Hyperion Tubes from Astera screw into the tube and allow it to be suspended without a frame. They can also be used for suspending four tubes via safety wire.

Astera Metal Holder for Mounting Tubes

This Metal Holder for Mounting Astera Tubes is used to mount FP1, FP2, and FP3 tubes to walls, truss and other structures. They can can also be secured with spax screws.

Astera Baby Pin Double-Ended Spigot

An essential accessory for mounting on Super Clamps or any piece of grip gear with female threads, the Baby Pin Double-Ended Spigot from Astera has 1/4"-20 threads at one end and 3/8"-16 threads at the other for mounting onto clamping gear and support lights with a 5/8" receiver. The stainless steel pin is 2.7" long and compatible with the AX3 bracket, AX3 housing, AX5 bracket, AX1 Holder, AX1 Wing Plate, and more.

Astera Foldable Stand for LED Tube Lights

The Foldable Stand for LED Tube Lights supports Astera AX1, FP1, and FP2 tubes in a vertical position, very close to the floor, for low-angle shooting. The three legs nest together into a compact form for space-efficient packing.

SPECS

Astera TitanTube RGB LED Light Specs

Light Fixture

Lumens	2900
Photometrics	72.9 fc / 785 Lux at 3.28' / 1 m
Color Temperature	1750 to 20,000K
Color Accuracy Standard	CRI 96 TLCI 96
Cooling System	Passive
Dimming	Yes
Housing Material	Metal, Polycarbonate
Number of LEDs	16 (RGB)
Expected Lamp Life	50,000 Hours
Beam Angle	120°
Fixture Dimensions	40.7 x 1.6" / 103.4 x 4.1 cm
Fixture Weight	3 lb / 1.36 kg

Mounting

Fixture Mount

None

Remote Operation

Remote Control Type	DMX, Wi-Fi, CRMX, Wireless DMX
Wireless Range	984.3' / 300 m

Power

AC Input Power	90 to 264 VAC, 50 / 60 Hz
DC Input Power	24 VDC
Power Source	AC Adapter, Integrated Battery
Max Power Consumption	48 W

Internal Battery

Run Time	20 Hours at Full Power
Charging Time	3 Hours

Physical

IP Rating	IP65
Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	0 to 100%

Packaging Info

Package Weight	4.3 lb
Box Dimensions (LxWxH)	43 x 2.5 x 2.5"

Astera Titan Tube Charging Case (Black) Specs

Exterior

Closure Type	Latch
Carry and Transport Options	1 x Handle
Material of Construction	ABS Plastic
Exterior Dimensions (W x H x D)	45.1 x 17.4 x 6.2" / 114.6 x 44.2 x 15.7 cm
Weight	26.5 lb / 12 kg

Packaging Info

Package Weight	45 lb
Box Dimensions (LxWxH)	47.25 x 19.75 x 8.5"

Astera M5 Eyebolt For Ax1 Pixel, Helios, Titan And Hyperion Tubes (Pair) Specs

Dimensions	Inner Diameter: 0.47" / 12 mm Outer Diameter: 0.82" / 21 mm Length: 1" / 27 mm
Thread	M5
Weight	0.35 oz / 11 g

Packaging Info

Package Weight	0.025 lb
Box Dimensions (LxWxH)	3 x 2 x 0.5"

Astera Metal Holder For Mounting Tubes Specs

Material of Construction	Stainless Steel
Thread	M5
Dimensions	2.03 x 2.06 x 0.6" / 51.6 x 52.5 x 15 mm

Packaging Info

Package Weight	0.11 lb
Box Dimensions (LxWxH)	3 x 2 x 0.6"

Astera Baby Pin Double-Ended Spigot Specs

Mounting	1/4"-20 Male, 3/8"-16 Male
Rotation	360°
Material	Steel
Dimensions	ø: 0.7 x L: 2.7" / ø: 19.0 x L: 68.0 mm

Packaging Info

Package Weight	0.135 lb
Box Dimensions (LxWxH)	2.95 x 2 x 0.7"

Astera Foldable Stand For LED Tube Lights Specs

Stand Type	1 x Backlight Stand
Closed Length	8.7" / 22 cm

Mounting

Stand/Column Top Mount

M5 Male

Features

Accepts Second Riser

General

Leg Shape	Rectangular
Finish	Black
Warranty Length	Limited 90-Day Warranty

Packaging Info

Package Weight	0.7 lb
Box Dimensions (LxWxH)	9.1 x 1.85 x 1.75"

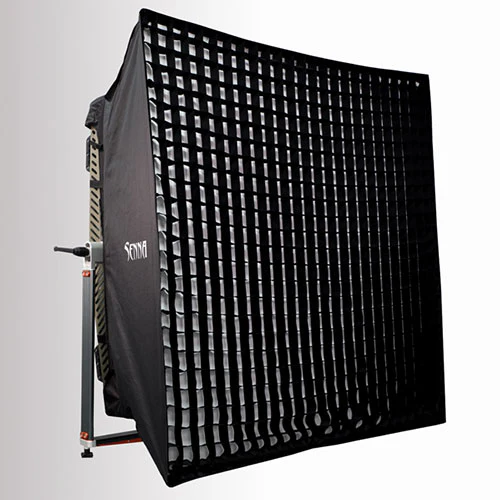

Senna Masterpiece Soft Box Kit
