Original: $129.00
-65%$129.00
$45.15The Story
- For Tilta RED KOMODO & Sony FX3 Cages
- For Tilta Panasonic BGH1 Cage
- 15mm LWS Rod Support
- Tilta-Standard Dovetail on Bottom
- Use with Tilta to ARRI Baseplate Adapter
- 1/4''-20 & 3/8''-16 Threads on Bottom
- Aluminum Alloy & Stainless Steel

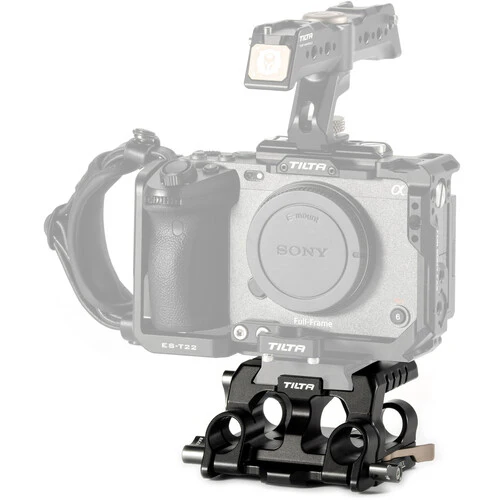

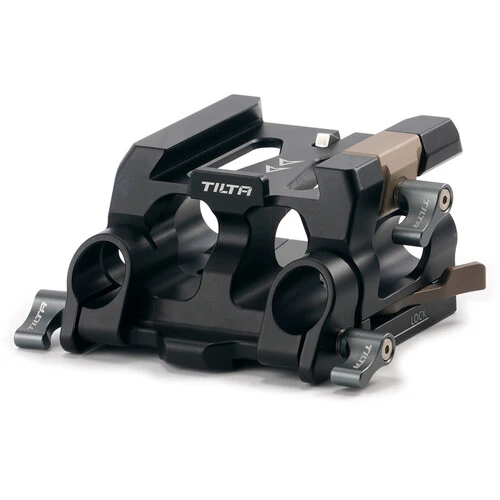

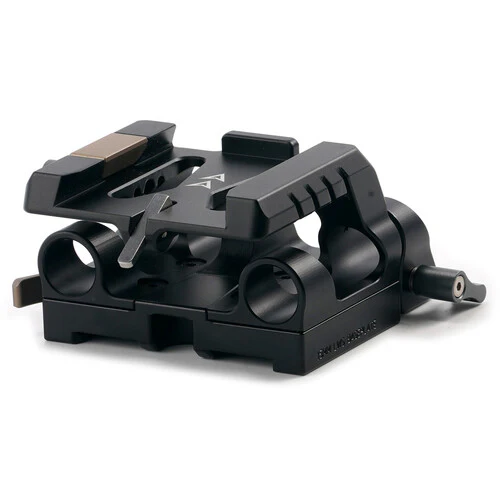

The black 15mm LWS Baseplate Type IV is compatible with Tilta full cages for RED KOMODO, Sony FX3, and Panasonic BGH1 cameras. Use this baseplate to add 15mm LWS rod support for accessories like a follow focus, matte box, or lens motor. The 15mm LWS Baseplate Type IV's dovetail bottom slides onto a separately available Tilta-standard baseplate or ARRI-style baseplate when used with the separately available Tilta to ARRI adapter. The bottom of the baseplate also incorporates several 1/4"-20 and 3/8"-16 threads for mounting a quick release plate.
Compatibility
- Tilta RED KOMODO full cage
- Tilta Sony FX3 full cage
- Tilta Panasonic BGH1 full cage
15mm LWS Rod Support
Provides 15mm LWS rod support for accessories like a follow focus, matte box, or lens motor
Tilta-Standard Dovetail
- Slides and locks onto a Tilta-standard dovetail baseplate
- Works with the separately available Tilta to ARRI Multi-Functional Baseplate
Quick Release Compatibility
Bottom 1/4"-20 and 3/8"-16 threads are compatible with almost any quick release plate
SPECS
| Support Type | Baseplate |
| Grip Type | None |
| Camera Compatibility | Panasonic DC-BGH1, RED KOMODO, Sony FX3 |
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Battery Plate Type | None |
| Accessory Mounting | None |
| Tripod Mounting | 1/4"-20 Thread, 3/8"-16 Thread |
| Rod Ports | 2 x 15 mm Rod Port |
| Shoe Mounting | None |
| Rosettes | None |
| Materials | Aluminum, Steel |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
| Package Weight | 0.71 lb |
| Box Dimensions (LxWxH) | 5.6 x 4.5 x 2.8" |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
- For Tilta RED KOMODO & Sony FX3 Cages
- For Tilta Panasonic BGH1 Cage
- 15mm LWS Rod Support
- Tilta-Standard Dovetail on Bottom
- Use with Tilta to ARRI Baseplate Adapter
- 1/4''-20 & 3/8''-16 Threads on Bottom
- Aluminum Alloy & Stainless Steel
The black 15mm LWS Baseplate Type IV is compatible with Tilta full cages for RED KOMODO, Sony FX3, and Panasonic BGH1 cameras. Use this baseplate to add 15mm LWS rod support for accessories like a follow focus, matte box, or lens motor. The 15mm LWS Baseplate Type IV's dovetail bottom slides onto a separately available Tilta-standard baseplate or ARRI-style baseplate when used with the separately available Tilta to ARRI adapter. The bottom of the baseplate also incorporates several 1/4"-20 and 3/8"-16 threads for mounting a quick release plate.
Compatibility
- Tilta RED KOMODO full cage
- Tilta Sony FX3 full cage
- Tilta Panasonic BGH1 full cage
15mm LWS Rod Support
Provides 15mm LWS rod support for accessories like a follow focus, matte box, or lens motor
Tilta-Standard Dovetail
- Slides and locks onto a Tilta-standard dovetail baseplate
- Works with the separately available Tilta to ARRI Multi-Functional Baseplate
Quick Release Compatibility
Bottom 1/4"-20 and 3/8"-16 threads are compatible with almost any quick release plate
SPECS
| Support Type | Baseplate |
| Grip Type | None |
| Camera Compatibility | Panasonic DC-BGH1, RED KOMODO, Sony FX3 |
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Battery Plate Type | None |
| Accessory Mounting | None |
| Tripod Mounting | 1/4"-20 Thread, 3/8"-16 Thread |
| Rod Ports | 2 x 15 mm Rod Port |
| Shoe Mounting | None |
| Rosettes | None |
| Materials | Aluminum, Steel |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
| Package Weight | 0.71 lb |
| Box Dimensions (LxWxH) | 5.6 x 4.5 x 2.8" |
