OVERVIEW
- Supports V-Mount Battery
- Mounts onto Optional 15mm LWS Rods
- Power Camera with 2-Pin LEMO-Type Cable
- Can Hot Swap with Camera Battery
- Provides 14V Power to Camera
- 1 x 5.8A D-Tap Accessory Output
- Protective Digital Accessory Fuse

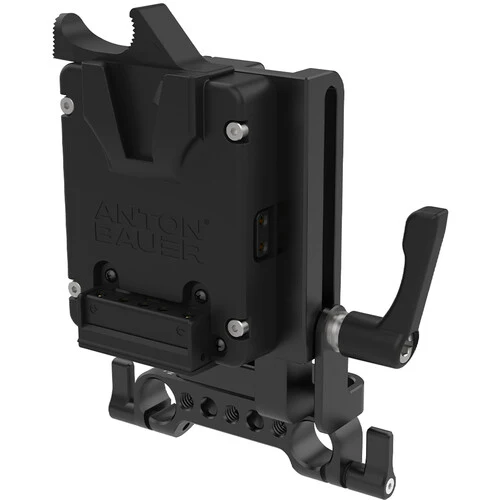

Add a professional, high-capacity battery plate to power your Blackmagic Pocket Cinema Camera 6K Pro rig with this compact Micro Battery Slide Pro from Wooden Camera. It supports one V-mount battery while leaving access to the camera's standard battery compartment, and it powers the camera using a 2-pin LEMO-type connector cable. With the camera's L-series battery in place, hot swapping is supported.

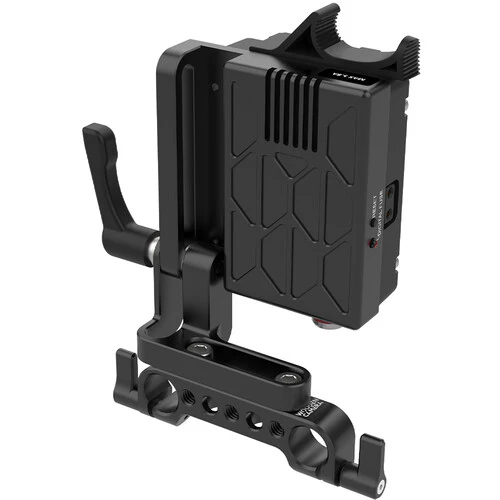

The battery slide mounts onto optional 15mm rods using its integrated 15mm LWS rod clamp. It also features a 5.8V D-Tap output for powering accessories. The D-Tap accessory output features a digital fuse that monitors the D-Tap port and disables it if it exceeds the set current for accessories, leaving the camera running without interruption. Once the load has been reduced by removing accessories, a reset button can be pressed to enable accessory power again.
Compatibility
- Blackmagic Pocket Cinema Camera 6K Pro
- V-mount battery
SPECS
| Power Output | D-Tap: VDC at 5.8 A |
| Camera Power Method | Connector |
| Connectors | 1 x 2-Pin LEMO 1 x D-Tap |
| Plate Front / Battery Mount | V-Mount |
| Plate Rear Mount | 15 mm Rod Clamp |
| Number of Battery Bays | 1 |
| Hot-Swap Support | Yes |
| Dimensions | 5.7 x 4.5 x 1.6" / 14.5 x 11.5 x 4 cm |
| Weight | 11.1 oz / 315 g |
